CEAT Farm Implement I-1 Bias Implement Tire

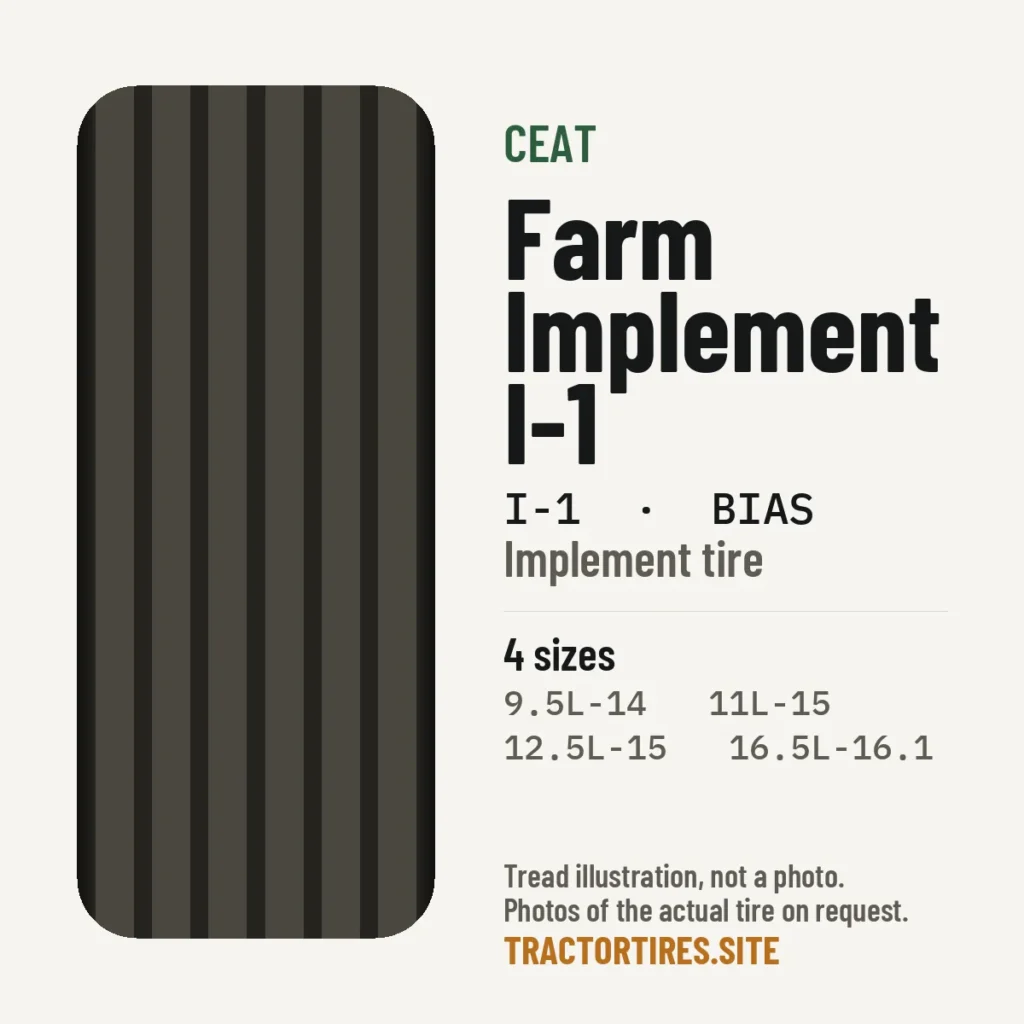

The CEAT Farm Implement I-1 is a bias-ply tire: a rib tire for free-rolling wheels on wagons, planters, balers and tillage tools. We list 4 sizes from 9.5L-14 to 16.5L-16.1 with load and price for each.
From $116.00
Shipping to the USA and Europe takes about 1 week. Payment by Zelle. We confirm the final price and shipping in your quote.
CEAT Farm Implement I-1 sizes
| Size | Load / ply | Price | Quote |
|---|---|---|---|
| 9.5L-14 | 111D | $116.00 | Add to quote |
| 11L-15 | 113B / 121B | $154.00 | Add to quote |
| 12.5L-15 | 123B / 127B | $175.00 | Add to quote |
| 16.5L-16.1 | 145B | $450.00 | Add to quote |
Sizes from manufacturer and dealer catalogs. Availability changes, so we confirm the exact size, load rating and condition in your quote.
Specifications
- Sizes
- 4 sizes (see table)
- Brand
- CEAT
- Model
- Farm Implement I-1
- Condition
- New
- Tread
- I-1
- Construction
- Bias
- Application
- Implement
The CEAT Farm Implement I-1 is a bias-ply tire: a rib tire for free-rolling wheels on wagons, planters, balers and tillage tools. We list 4 sizes, from 9.5L-14 to 16.5L-16.1.
What are the CEAT Farm Implement I-1 specs?
| Spec | CEAT Farm Implement I-1 |
|---|---|
| Brand | CEAT |
| Tread code | I-1 |
| Construction | Bias-ply |
| Type | Bias rib implement tire |
| Sizes listed | 4 |
| Rim diameters | 14 to 16.1 in (356 to 409 mm) |
Load, ply and price for each size are in the size table above. They come from the maker catalogs we sourced and are confirmed again in your quote.
What does the maker list for the Farm Implement I-1?
- Rib implement tire for free-rolling trailed equipment.
- Load indexes with B (50 km/h) speed symbol on most sizes.
- Covers L-series 14/15 in. and 16.1 in. rims.
Which sizes does the Farm Implement I-1 come in?
Each size links to its own page with the width, rim and fitment notes. Not sure which one your tractor uses? Read it off the sidewall of the tire you are replacing, or use the tire size converter.
- 9.5L-14: 241 mm (9.5 in) wide, 14 in rim
- 11L-15: 279 mm (11 in) wide, 15 in rim
- 12.5L-15: 318 mm (12.5 in) wide, 15 in rim
- 16.5L-16.1: 419 mm (16.5 in) wide, 16.1 in rim
How do you read the Farm Implement I-1 size?
Take 9.5L-14 as an example. It is 241 mm (9.5 in) wide on a 14 in (356 mm) rim. The dash in a bias size marks the construction, and in an inch size the first number is the width in inches and the last is the rim diameter. Our tractor tire size guide explains every number on the sidewall.
Before you order, check four things: the rim diameter matches your wheel, the load rating covers your heaviest working weight, the new tire matches the other tire on the same axle, and the size matches what the tractor maker approves.
Who does the Farm Implement I-1 suit?
Choose it for wagons, planters, balers, spreaders and tillage tools, where the tire carries load but does not pull. It does not drive anything. It rolls and carries, which is honest work.
What are the limits of the Farm Implement I-1?
Never fit a rib implement tire to a tractor drive axle. Straight ribs roll well and carry load but give almost no pull. Check the load rating for your wagon or implement weight, and the rim width for the size.
How does the Farm Implement I-1 compare with similar tires?
These models in our catalog overlap with the Farm Implement I-1 in size, so they are the ones you are most likely to be choosing between. Compare price per tire in the size tables, and compare the tread and load data, not only the brand name.
- Titan Hi-Flotation (bias rib implement tire): 4 sizes in common, 9.5L-14, 11L-15, 12.5L-15, 16.5L-16.1
- Carlisle Farm Specialist I-1 (bias rib implement tire): 4 sizes in common, 9.5L-14, 11L-15, 12.5L-15, 16.5L-16.1
- Maxam MS963 (bias rib implement tire): 4 sizes in common, 9.5L-14, 11L-15, 12.5L-15, 16.5L-16.1
Who makes the Farm Implement I-1?
CEAT is an Indian tire maker selling farm tires under its Farmax family. We source CEAT farm tires new, and used when available.
How do you order the Farm Implement I-1?
Pick your size above and add it to your quote list, or send us your size on WhatsApp. We confirm the exact size, load rating and availability in your quote. Shipping to the USA and Europe takes about 1 week, payment by Zelle. See our returns policy.
