Ascenso · New tire

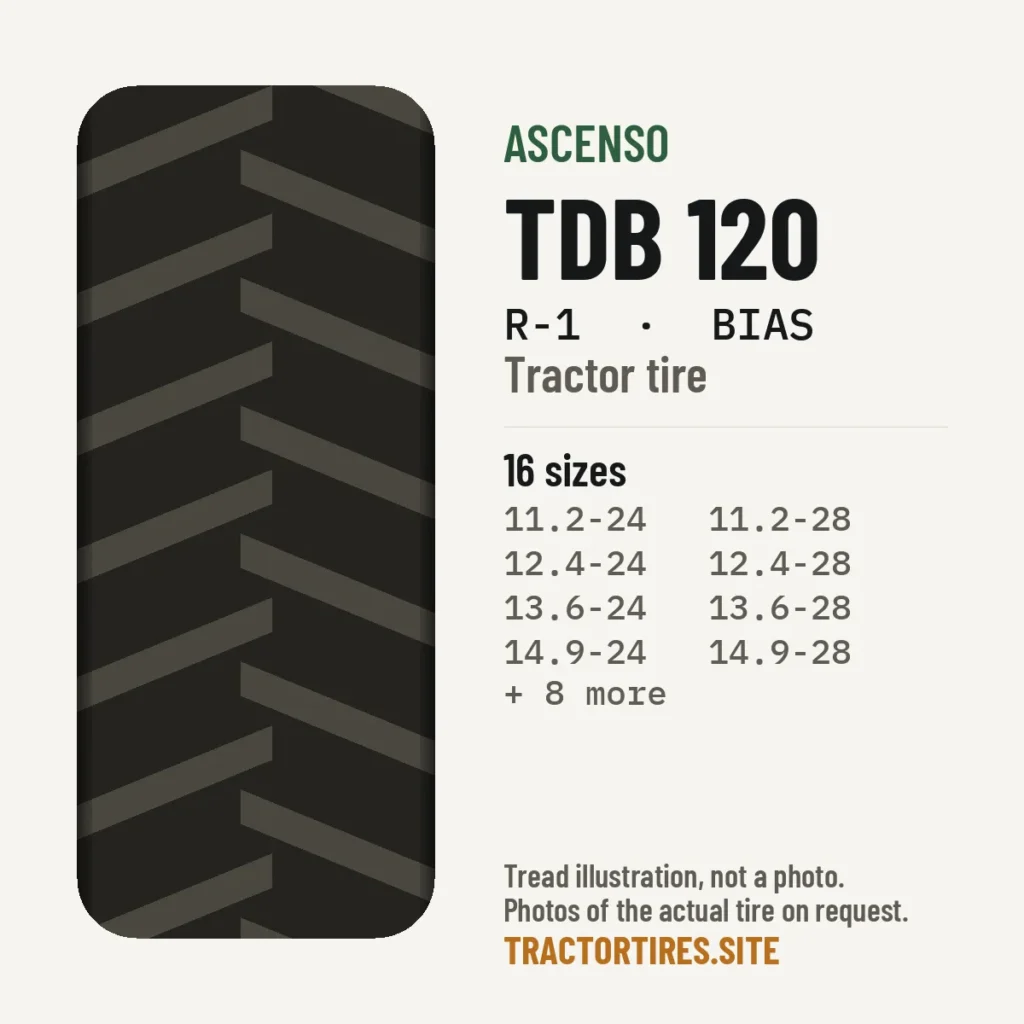

Ascenso TDB 120 R-1 Bias Tractor Tire
The Ascenso TDB 120 is a bias-ply tire: a standard bar-lug drive tire for tillage, hauling and general field work. We list 16 sizes from 11.2-24 to 18.4-38 with load and price for each.
From $264.00
Shipping to the USA and Europe takes about 1 week. Payment by Zelle. We confirm the final price and shipping in your quote.
Ascenso TDB 120 sizes
| Size | Load / ply | Price | Quote |
|---|---|---|---|
| 11.2-24 | 8 ply TL | $264.00 | Add to quote |
| 11.2-28 | 8 ply TT | $294.00 | Add to quote |
| 12.4-24 | 8 ply TL | $308.00 | Add to quote |
| 12.4-28 | 8 ply TT | $373.00 | Add to quote |
| 13.6-24 | 8 ply TT | $400.00 | Add to quote |
| 13.6-28 | 8 ply TL | $449.00 | Add to quote |
| 14.9-24 | 8 ply TT | $416.00 | Add to quote |
| 14.9-28 | 8 ply TT | $498.00 | Add to quote |
| 16.9-24 | 8 ply TT | $572.00 | Add to quote |
| 16.9-34 | 8 ply TT | $778.00 | Add to quote |
| 16.9-28 | 8 ply TL | $603.00 | Add to quote |
| 16.9-38 | 8 ply TT | $862.00 | Add to quote |
| 18.4-30 | 8 ply TT | $737.00 | Add to quote |
| 18.4-34 | 8 ply TT | $669.00 | Add to quote |
| 18.4-38 | 8 ply TT and TL | $943.00 | Add to quote |
| 14.9-30 | 8 ply TT | $629.00 | Add to quote |
Sizes from manufacturer and dealer catalogs. Availability changes, so we confirm the exact size, load rating and condition in your quote.
Specifications
- Sizes
- 16 sizes (see table)
- Brand
- Ascenso
- Model
- TDB 120
- Condition
- New
- Tread
- R1
- Construction
- Bias
- Application
- Rear tractor
The Ascenso TDB 120 is a bias-ply tire: a standard bar-lug drive tire for tillage, hauling and general field work. We list 16 sizes, from 11.2-24 to 18.4-38.
What are the Ascenso TDB 120 specs?
| Spec | Ascenso TDB 120 |
|---|---|
| Brand | Ascenso |
| Tread code | R-1 |
| Construction | Bias-ply |
| Type | R-1 bias rear drive tire |
| Sizes listed | 16 |
| Rim diameters | 24 to 38 in (610 to 965 mm) |
Load, ply and price for each size are in the size table above. They come from the maker catalogs we sourced and are confirmed again in your quote.
What does the maker list for the TDB 120?
- Bias R-1 rear tire.
- Wide lugs that are designed to self-clean.
- Mostly 8 ply; TT and TL versions in some sizes.
Which sizes does the TDB 120 come in?
Each size links to its own page with the width, rim and fitment notes. Not sure which one your tractor uses? Read it off the sidewall of the tire you are replacing, or use the tire size converter.
- 11.2-24: 284 mm (11.2 in) wide, 24 in rim
- 12.4-24: 315 mm (12.4 in) wide, 24 in rim
- 13.6-24: 345 mm (13.6 in) wide, 24 in rim
- 14.9-24: 378 mm (14.9 in) wide, 24 in rim
- 16.9-24: 429 mm (16.9 in) wide, 24 in rim
- 11.2-28: 284 mm (11.2 in) wide, 28 in rim
- 12.4-28: 315 mm (12.4 in) wide, 28 in rim
- 13.6-28: 345 mm (13.6 in) wide, 28 in rim
- 14.9-28: 378 mm (14.9 in) wide, 28 in rim
- 16.9-28: 429 mm (16.9 in) wide, 28 in rim
- 14.9-30: 378 mm (14.9 in) wide, 30 in rim
- 18.4-30: 467 mm (18.4 in) wide, 30 in rim
- 16.9-34: 429 mm (16.9 in) wide, 34 in rim
- 18.4-34: 467 mm (18.4 in) wide, 34 in rim
- 16.9-38: 429 mm (16.9 in) wide, 38 in rim
- 18.4-38: 467 mm (18.4 in) wide, 38 in rim
How do you read the TDB 120 size?
Take 11.2-24 as an example. It is 284 mm (11.2 in) wide on a 24 in (610 mm) rim. The dash in a bias size marks the construction, and in an inch size the first number is the width in inches and the last is the rim diameter. Our tractor tire size guide explains every number on the sidewall.
Before you order, check four things: the rim diameter matches your wheel, the load rating covers your heaviest working weight, the new tire matches the other tire on the same axle, and the size matches what the tractor maker approves.
Who does the TDB 120 suit?
Choose it for general farm work on soil that is not constantly wet: tillage, hauling and mixed use. The rim range, 24 to 38 inches, runs from compact and utility tractors up to row-crop machines. It is a sound pick for moderate yearly hours.
What are the limits of the TDB 120?
Bias casings give a shorter footprint and a firmer road ride than a radial, and R-1 lugs are shallower than R-1W, so very wet or heavy ground can slow it down. The radial vs bias guide covers the trade-off, and the R1 vs R1W guide shows when the deeper lug is worth it.
How does the TDB 120 compare with similar tires?
These models in our catalog overlap with the TDB 120 in size, so they are the ones you are most likely to be choosing between. Compare price per tire in the size tables, and compare the tread and load data, not only the brand name.
- Alliance 324 FarmPRO (R-1 bias rear drive tire): 16 sizes in common, 11.2-24, 12.4-24, 13.6-24, 14.9-24, 16.9-24 and more
- Ozka KNK50 (R-1 bias rear drive tire): 16 sizes in common, 11.2-24, 12.4-24, 13.6-24, 14.9-24, 16.9-24 and more
- BKT TR 135 (R-1 bias rear drive tire): 15 sizes in common, 11.2-24, 12.4-24, 13.6-24, 14.9-24, 16.9-24 and more
Who makes the TDB 120?
Ascenso is the farm tire brand of Mahansaria Tyres in India. We source Ascenso farm tires new, and used when available.
How do you order the TDB 120?
Pick your size above and add it to your quote list, or send us your size on WhatsApp. We confirm the exact size, load rating and availability in your quote. Shipping to the USA and Europe takes about 1 week, payment by Zelle. See our returns policy.
